Diffraction project datasets MH10719A_3mdo
Project details
| Title |

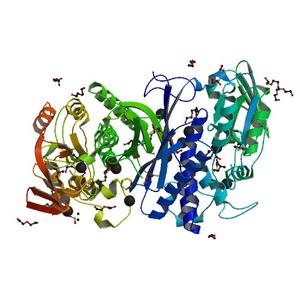

Crystal structure of a Putative phosphoribosylformylglycinamidine cyclo-ligase (BDI_2101) from Parabacteroides distasonis ATCC 8503 at 1.91 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.15 / 0.19 |
| Unit cell edges [Å] |
99.94 x
99.94 x
163.02
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

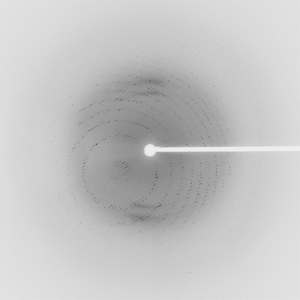

Dataset 134818_1_E1_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
201.0 |
| Wavelength [Å] |
0.97949 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

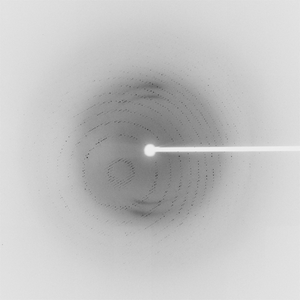

Dataset 134818_1_E2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
201.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-11-06 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
