Diffraction project datasets MH0111B_3rf7
- Method: SAD
- Resolution: 2.12 Å
- Space group: I 41 2 2
PDB website for 3RF7
PDB validation report for 3RF7
doi:10.18430/M33RF7
Project details

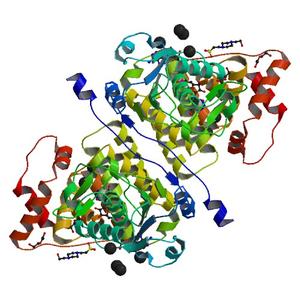

| Title | Crystal structure of an Iron-containing alcohol dehydrogenase (Sden_2133) from Shewanella denitrificans OS-217 at 2.12 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.20 |
| Unit cell edges [Å] | 121.07 x 121.07 x 275.67 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

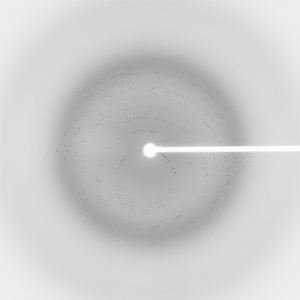

Dataset 139747_1_####.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 37.0 |
| Wavelength [Å] | 0.97936 |
| Experiment Date | 2009-11-06 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
