Diffraction project datasets MG9652H_3fd0
Project details
| Title |

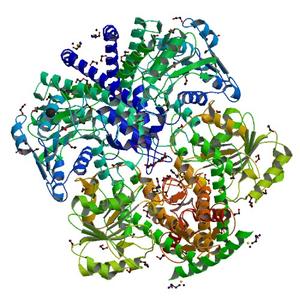

Crystal structure of putative cystathionine beta-lyase involved in aluminum resistance (NP_470671.1) from LISTERIA INNOCUA at 2.12 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.15 / 0.19 |
| Unit cell edges [Å] |
131.89 x
131.89 x
116.74
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

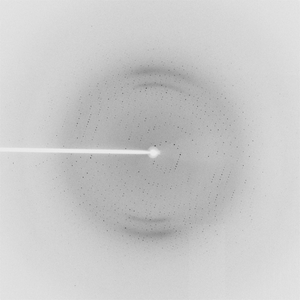

Dataset 94284_1_E1.#### details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
160.0 |
| Wavelength [Å] |
0.97967 |
| Experiment Date |
2008-10-13 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

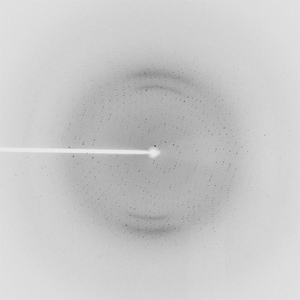

Dataset 94284_1_E2.#### details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
160.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2008-10-13 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

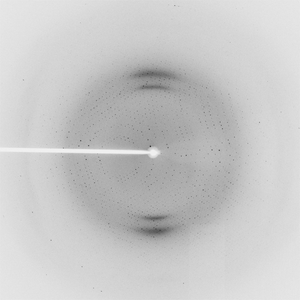

Dataset 94284_2.#### details
| Number of frames |
41 (1 - 41) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
185.0 |
| Wavelength [Å] |
0.94645 |
| Experiment Date |
2008-10-13 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|
