Diffraction project datasets MG9341A_3es1

  • Method: MAD
  • Resolution: 1.91 Å
  • Space group: P 64 2 2
Download all images (3.5 GB)

PDB website for 3ES1
PDB validation report for 3ES1

doi:10.18430/M33ES1

Project details

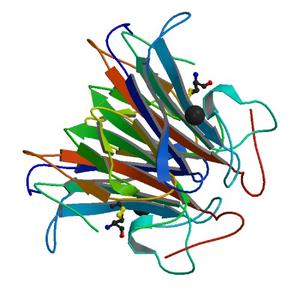

Title Crystal structure of protein with a cupin-like fold and unknown function (YP_001165807.1) from NOVOSPHINGOBIUM AROMATICIVORANS DSM 12444 at 1.91 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 78.33 x 78.33 x 107.32
Unit cell angles [°] 90.0, 90.0, 120.0

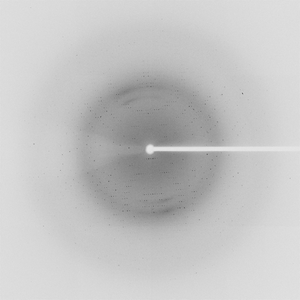

Dataset 92768_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 75.0
Wavelength [Å] 0.97932
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 92768_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 75.0
Wavelength [Å] 0.92522
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

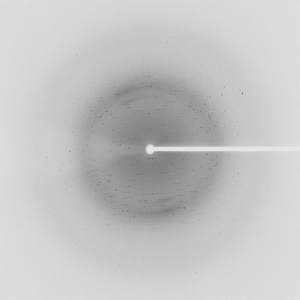

Dataset 92768_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 75.0
Wavelength [Å] 0.97879
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
