Diffraction project datasets MG8818A_3ejk

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: C 2 2 21
Download all images (2.8 GB)

PDB website for 3EJK
PDB validation report for 3EJK

doi:10.18430/M33EJK

Project details

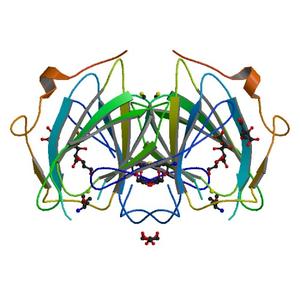

Title Crystal structure of dTDP Sugar Isomerase (YP_390184.1) from DESULFOVIBRIO DESULFURICANS G20 at 1.95 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 81.79 x 86.51 x 51.34
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 91965_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 154.0
Wavelength [Å] 0.97932
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 91965_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 154.0
Wavelength [Å] 0.91162
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 91965_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 154.0
Wavelength [Å] 0.97911
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
