Diffraction project datasets MG8150B_3f44

  • Method: MAD
  • Resolution: 1.55 Å
  • Space group: I 4
Download all images (2.3 GB)

PDB website for 3F44

doi:10.18430/M33F44

Project details

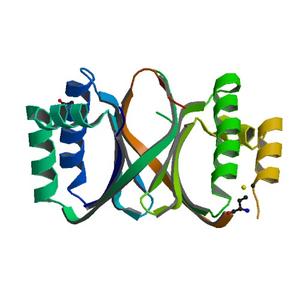

Title Crystal structure of putative monooxygenase (YP_193413.1) from Lactobacillus acidophilus NCFM at 1.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 103.38 x 103.38 x 40.97
Unit cell angles [°] 90.0, 90.0, 90.0

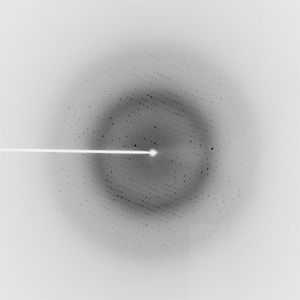

Dataset 94235_1_E1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 51.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

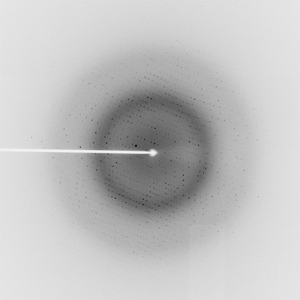

Dataset 94235_1_E2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 51.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)
