Diffraction project datasets MG7794B_3gz7

  • Method: MAD
  • Resolution: 2.15 Å
  • Space group: C 1 2 1
Download all images (4.1 GB)

PDB website for 3GZ7
PDB validation report for 3GZ7

doi:10.18430/M33GZ7

Project details

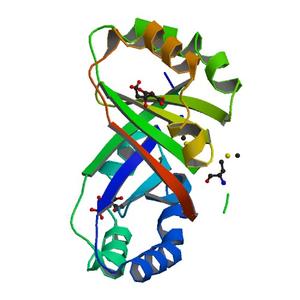

Title Crystal structure of Putative antibiotic biosynthesis monooxygenase (NP_888398.1) from BORDETELLA BRONCHISEPTICA at 2.15 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.24
Unit cell edges [Å] 103.69 x 55.81 x 40.66
Unit cell angles [°] 90.0, 97.3, 90.0

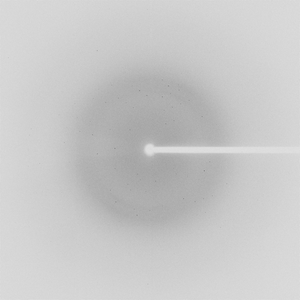

Dataset 107059_1_E1_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 190.0
Wavelength [Å] 0.97966
Experiment Date 2009-01-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

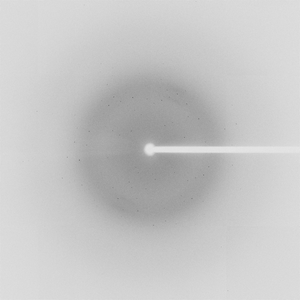

Dataset 107059_1_E2_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 190.0
Wavelength [Å] 0.91837
Experiment Date 2009-01-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

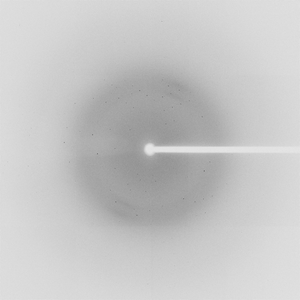

Dataset 107059_2_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 190.0
Wavelength [Å] 0.97946
Experiment Date 2009-01-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
