Diffraction project datasets MG5552I_3f9s

  • Method: MAD
  • Resolution: 1.76 Å
  • Space group: P 1 21 1
Download all images (5.9 GB)

PDB website for 3F9S
PDB validation report for 3F9S

doi:10.18430/M33F9S

Project details

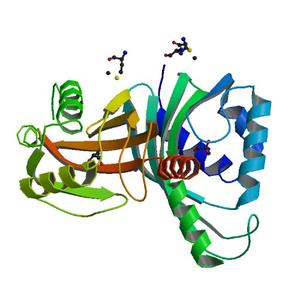

Title Crystal structure of a putative polyketide cyclase (lferr_0659) from acidithiobacillus ferrooxidans atcc at 1.76 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 50.97 x 48.59 x 55.97
Unit cell angles [°] 90.0, 94.2, 90.0

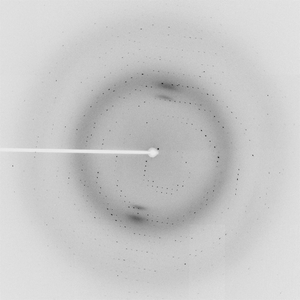

Dataset 94021_1_E1.#### details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 33.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

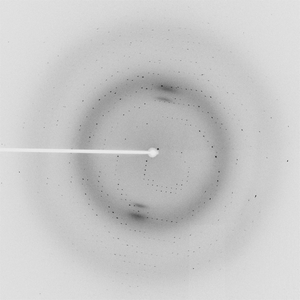

Dataset 94021_1_E2.#### details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 33.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

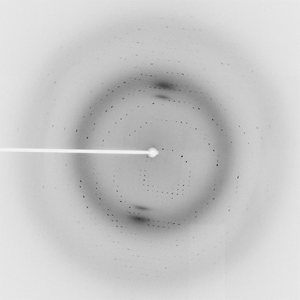

Dataset 94021_2.#### details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 33.0
Wavelength [Å] 0.97953
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)
