Diffraction project datasets MG3368B_3ke3
Project details
| Title |

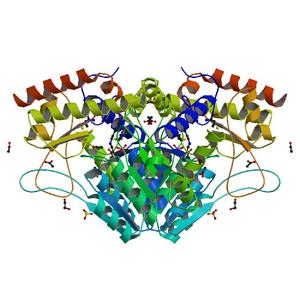

Crystal structure of Putative serine-pyruvate aminotransferase (YP_263484.1) from PSYCHROBACTER ARCTICUM 273-4 at 2.20 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.21 |
| Unit cell edges [Å] |
61.65 x
98.35 x
121.07
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

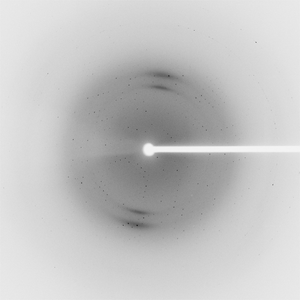

Dataset 119698_1_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
55.0 |
| Wavelength [Å] |
0.97956 |
| Experiment Date |
2009-05-21 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

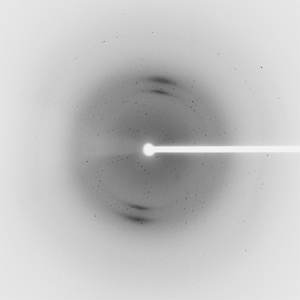

Dataset 119698_1_E2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
55.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2009-05-21 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

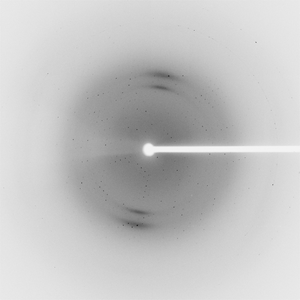

Dataset 119698_2_###.mccd details
| Number of frames |
200 (1 - 200) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
55.0 |
| Wavelength [Å] |
0.97938 |
| Experiment Date |
2009-05-21 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
