Diffraction project datasets MG3309B_3ele
Project details
| Title |

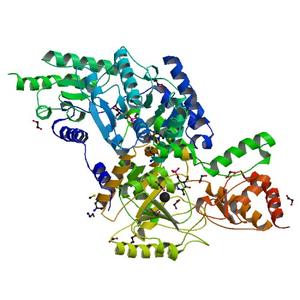

Crystal structure of Amino Transferase (RER070207001803) from Eubacterium rectale at 2.10 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.17 / 0.22 |
| Unit cell edges [Å] |
65.56 x
68.39 x
98.11
|
| Unit cell angles [°] |
82.5,
79.5,
75.7
|

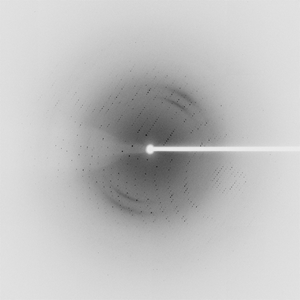

Dataset 92225_1_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2008-08-10 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

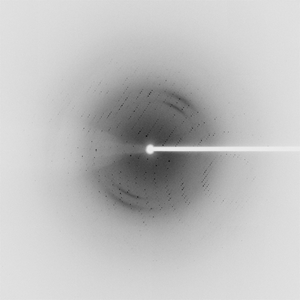

Dataset 92225_1_E2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-08-10 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 92225_2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Wavelength [Å] |
0.97917 |
| Experiment Date |
2008-08-10 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

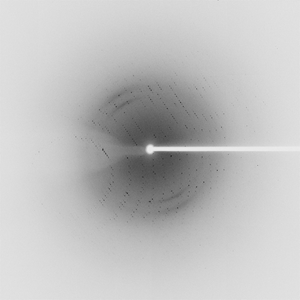

Dataset 92225_3_###.mccd details
| Number of frames |
50 (1 - 50) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
181.0 |
| Wavelength [Å] |
0.97917 |
| Experiment Date |
2008-08-10 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
