Diffraction project datasets MG14668A_3eo6
Project details
| Title |

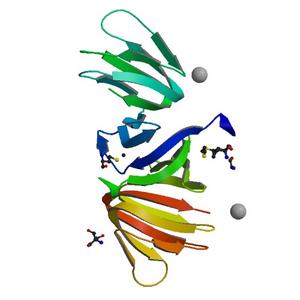

Crystal structure of protein of unknown function (DUF1255) (AFE_2634) from ACIDITHIOBACILLUS FERROOXIDANS NCIB8455 at 0.97 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.12 / 0.14 |
| Unit cell edges [Å] |
30.78 x
82.03 x
40.85
|
| Unit cell angles [°] |
90.0,
110.0,
90.0
|

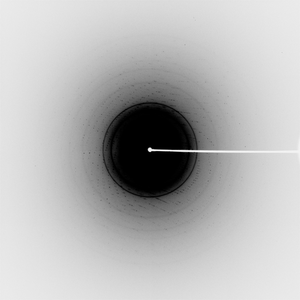

Dataset 89921_1_###.mccd details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
90.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
278.0 |
| Wavelength [Å] |
0.97837 |
| Experiment Date |
2008-08-01 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

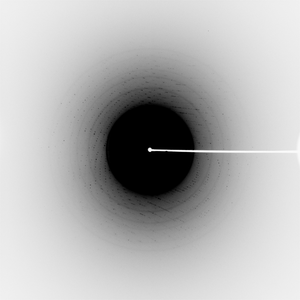

Dataset 89921_2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
90.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
278.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-08-01 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

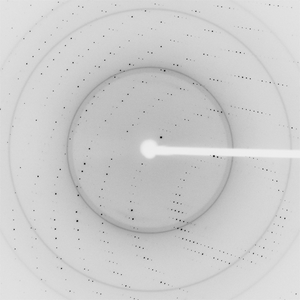

Dataset 89921_3_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
278.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-08-01 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
