Diffraction project datasets MG14655B_3g8z
Project details
| Title |

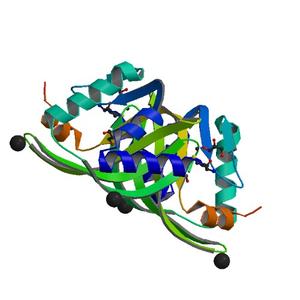

Crystal structure of protein of unknown function with cystatin-like fold (NP_639274.1) from Xanthomonas campestris at 1.90 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.20 |
| Unit cell edges [Å] |
69.99 x
69.99 x
46.41
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

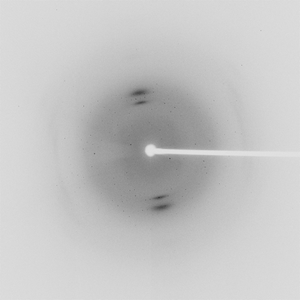

Dataset 102315_1_E1_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
211.0 |
| Wavelength [Å] |
0.97864 |
| Experiment Date |
2008-11-15 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

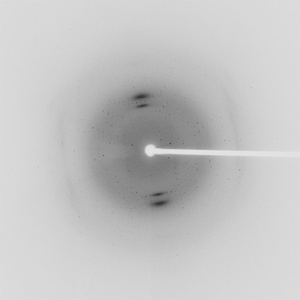

Dataset 102315_1_E2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
211.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2008-11-15 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
