Diffraction project datasets MG14652A_3gzb
Project details
| Title |

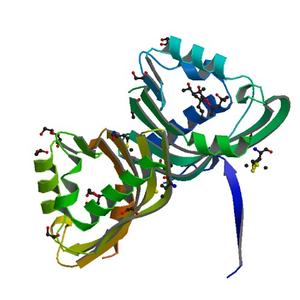

Crystal structure of putative SnoaL-like polyketide cyclase (YP_001182657.1) from Shewanella putrefaciens CN-32 at 1.44 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.15 / 0.17 |
| Unit cell edges [Å] |
90.24 x
89.94 x
94.32
|
| Unit cell angles [°] |
90.0,
89.9,
90.0
|

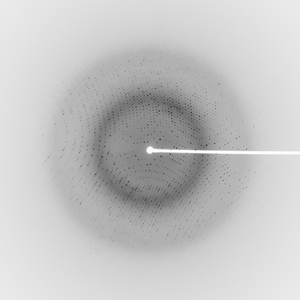

Dataset 108276_1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
307.0 |
| Wavelength [Å] |
0.97845 |
| Experiment Date |
2009-02-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

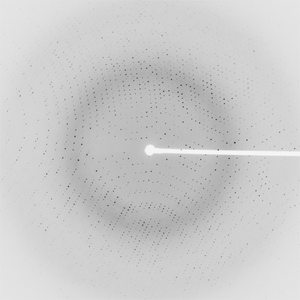

Dataset 108276_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
307.0 |
| Wavelength [Å] |
0.97845 |
| Experiment Date |
2009-02-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

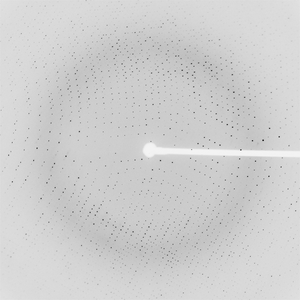

Dataset 108276_3_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
400.1 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
307.0 |
| Wavelength [Å] |
0.97845 |
| Experiment Date |
2009-02-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
