Diffraction project datasets MG14649A_3fgv

  • Method: MAD
  • Resolution: 1.3 Å
  • Space group: P 65
Download all images (3.1 GB)

PDB website for 3FGV
PDB validation report for 3FGV

doi:10.18430/M33FGV

Project details

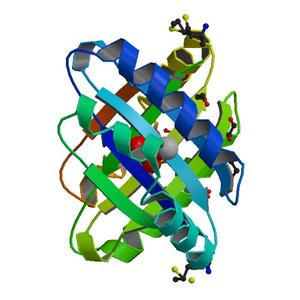

Title CRYSTAL STRUCTURE OF A PUTATIVE ANTIBIOTIC BIOSYNTHESIS MONOOXYGENASE (SPO2313) FROM SILICIBACTER POMEROYI DSS-3 AT 1.30 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.13 / 0.15
Unit cell edges [Å] 78.76 x 78.76 x 69.81
Unit cell angles [°] 90.0, 90.0, 120.0

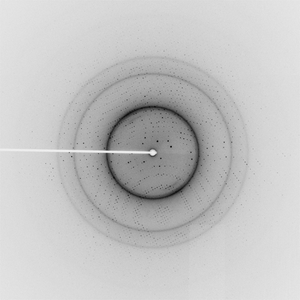

Dataset 95186_1_E1.#### details

Number of frames 91 (1 - 91)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 64.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)

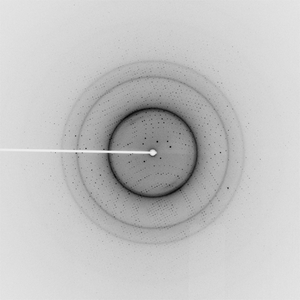

Dataset 95186_1_E2.#### details

Number of frames 120 (1 - 120)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 64.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)

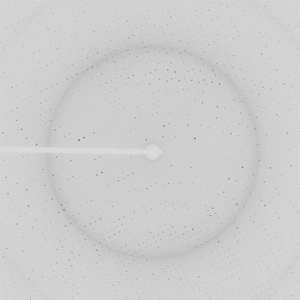

Dataset 95186_2.#### details

Number of frames 60 (1 - 60)
Distance [mm] 400.0
Oscillation width [°] 2.00
Phi [°] 64.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)
