Diffraction project datasets MG14622A_3hzp

  • Method: MAD
  • Resolution: 1.4 Å
  • Space group: P 32 2 1
Download all images (3.3 GB)

PDB website for 3HZP
PDB validation report for 3HZP

doi:10.18430/M33HZP

Project details

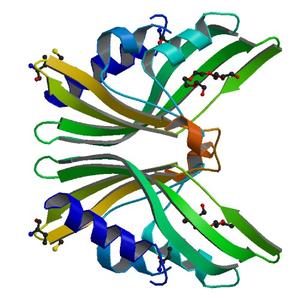

Title Crystal structure of NTF2-like protein of unknown function MN2A_0505 from Prochlorococcus marinus (YP_291699.1) from Prochlorococcus sp. NATL2A at 1.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.18
Unit cell edges [Å] 58.05 x 58.05 x 63.62
Unit cell angles [°] 90.0, 90.0, 120.0

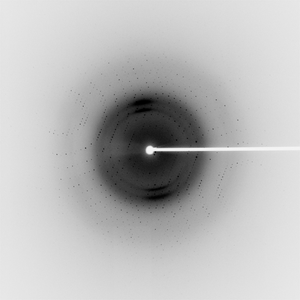

Dataset 113480_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 190.0
Oscillation width [°] 1.00
Phi [°] 167.0
Wavelength [Å] 0.97929
Experiment Date 2009-03-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

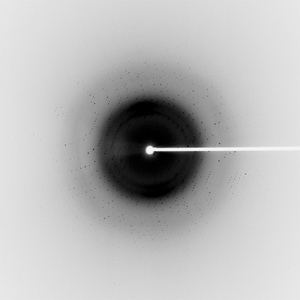

Dataset 113480_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 190.0
Oscillation width [°] 1.00
Phi [°] 167.0
Wavelength [Å] 0.91162
Experiment Date 2009-03-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

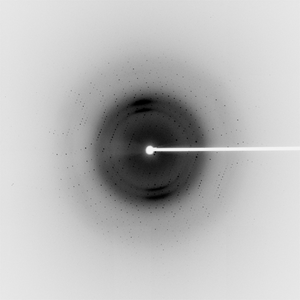

Dataset 113480_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 190.0
Oscillation width [°] 1.00
Phi [°] 167.0
Wavelength [Å] 0.97918
Experiment Date 2009-03-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
