Diffraction project datasets MG14606A_3ejv

  • Method: MAD
  • Resolution: 1.4 Å
  • Space group: P 21 3
Download all images (2.1 GB)

PDB website for 3EJV

doi:10.18430/M33EJV

Project details

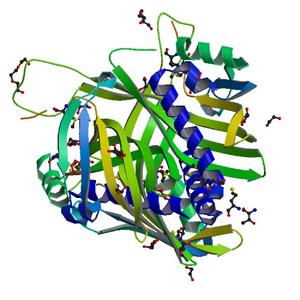

Title Crystal structure of a cystatin-like protein (saro_2766) from novosphingobium aromaticivorans dsm at 1.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 79.54 x 79.54 x 79.54
Unit cell angles [°] 90.0, 90.0, 90.0

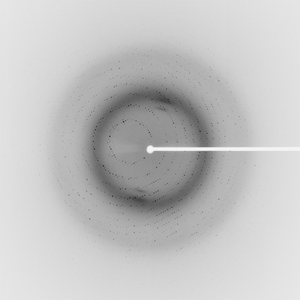

Dataset 93400_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 43.0
Wavelength [Å] 0.97929
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

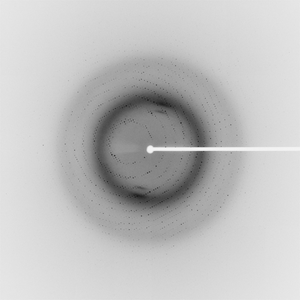

Dataset 93400_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 43.0
Wavelength [Å] 0.91162
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
