Diffraction project datasets MG14585A_3gju

  • Method: MAD
  • Resolution: 1.55 Å
  • Space group: C 1 2 1
Download all images (3.8 GB)

PDB website for 3GJU
PDB validation report for 3GJU

doi:10.18430/M33GJU

Project details

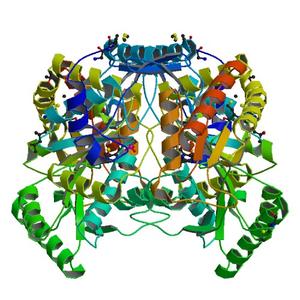

Title Crystal structure of a putative aminotransferase (mll7127) from mesorhizobium loti maff303099 at 1.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 113.22 x 59.58 x 85.34
Unit cell angles [°] 90.0, 130.6, 90.0

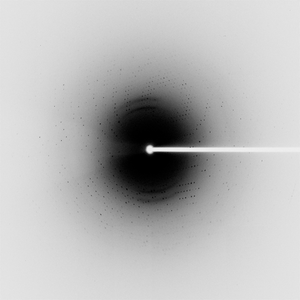

Dataset 105626_1_E1_###.mccd details

Number of frames 110 (1 - 110)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 185.0
Wavelength [Å] 0.97954
Experiment Date 2009-01-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

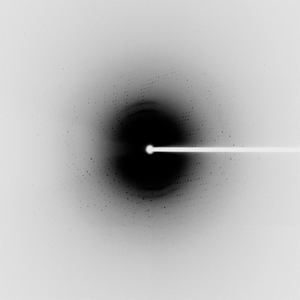

Dataset 105626_1_E2_###.mccd details

Number of frames 110 (1 - 110)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 185.0
Wavelength [Å] 0.91162
Experiment Date 2009-01-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

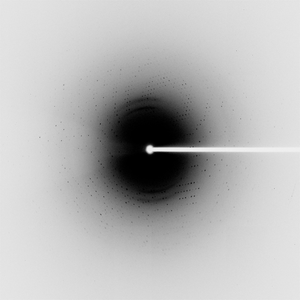

Dataset 105626_2_###.mccd details

Number of frames 110 (1 - 110)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 185.0
Wavelength [Å] 0.97941
Experiment Date 2009-01-18
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
