Diffraction project datasets MG14575E_3p6k

  • Method: MAD
  • Resolution: 2.07 Å
  • Space group: P 32 2 1
Download all images (3.8 GB)

PDB website for 3P6K
PDB validation report for 3P6K

doi:10.18430/M33P6K

Project details

Title Crystal structure of a PLP-dependent aminotransferase (ZP_03625122.1) from Streptococcus suis 89-1591 at 2.07 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 83.98 x 83.98 x 176.39
Unit cell angles [°] 90.0, 90.0, 120.0

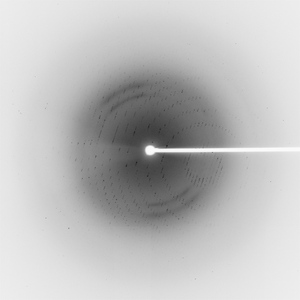

Dataset 137302_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 302.0
Wavelength [Å] 0.97920
Experiment Date 2010-07-22
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

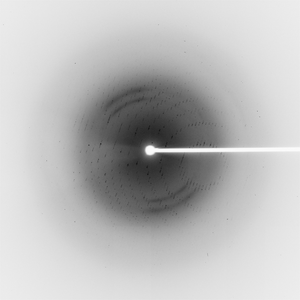

Dataset 137302_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 302.0
Wavelength [Å] 0.91162
Experiment Date 2010-07-22
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

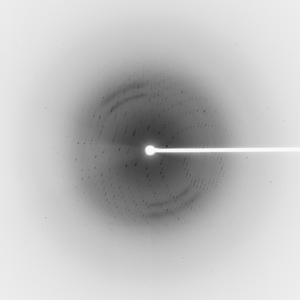

Dataset 137302_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 302.0
Wavelength [Å] 0.97903
Experiment Date 2010-07-22
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
