Diffraction project datasets MG14562B_3hk4
Project details
| Title |

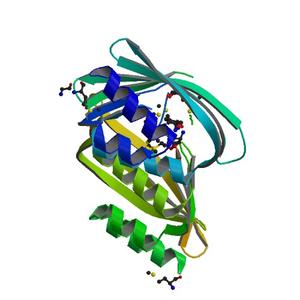

CRYSTAL STRUCTURE OF A PUTATIVE SNOAL-LIKE POLYKETIDE CYCLASE [CARBOHYDRATE PHOSPHATASE] (MLR7391) FROM MESORHIZOBIUM LOTI AT 1.96 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.22 |
| Unit cell edges [Å] |
42.18 x
54.78 x
63.84
|
| Unit cell angles [°] |
88.8,
84.9,
73.6
|

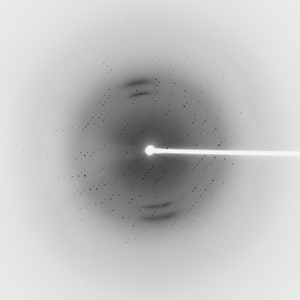

Dataset 112290_1_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
355.0 |
| Wavelength [Å] |
0.97894 |
| Experiment Date |
2009-02-22 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 112290_1_E2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
355.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-02-22 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 112290_2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
355.0 |
| Wavelength [Å] |
0.97833 |
| Experiment Date |
2009-02-22 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

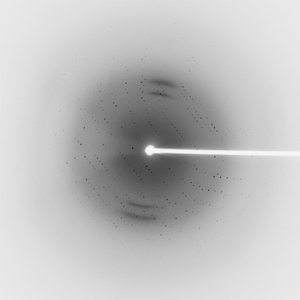

Dataset 112290_3_###.mccd details
| Number of frames |
40 (1 - 40) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
176.0 |
| Wavelength [Å] |
0.97833 |
| Experiment Date |
2009-02-22 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
