Diffraction project datasets MG14561D_3f8h

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 43 21 2
Download all images (2.9 GB)

PDB website for 3F8H

doi:10.18430/M33F8H

Project details

Title Crystal structure of a putative polyketide cyclase (tm1040_3560) from silicibacter sp. tm1040 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 63.31 x 63.31 x 196.09
Unit cell angles [°] 90.0, 90.0, 90.0

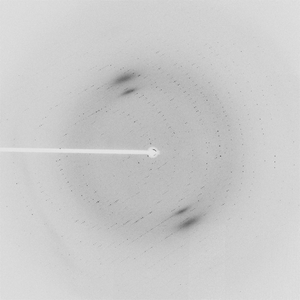

Dataset 96723_1_E1.#### details

Number of frames 48 (1 - 48)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 55.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

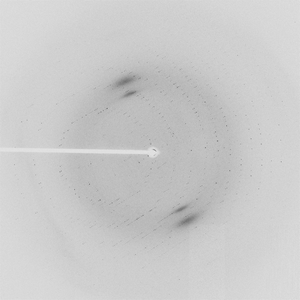

Dataset 96723_1_E2.#### details

Number of frames 48 (1 - 48)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 55.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

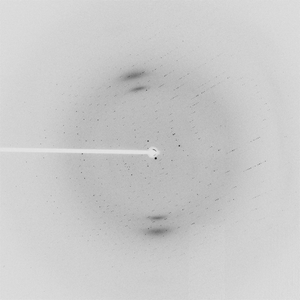

Dataset 96723_2_E1.#### details

Number of frames 44 (1 - 44)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 102.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

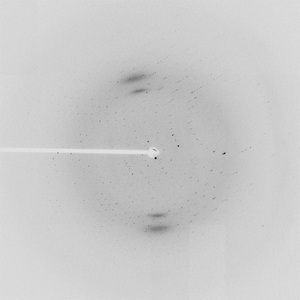

Dataset 96723_2_E2.#### details

Number of frames 44 (1 - 44)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 102.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

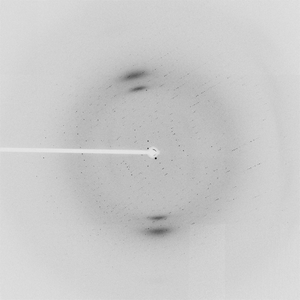

Dataset 96723_3_E1.#### details

Number of frames 44 (1 - 44)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 102.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

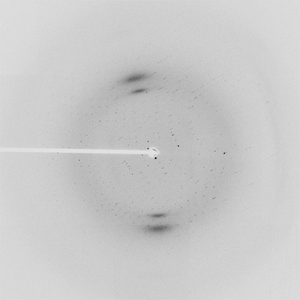

Dataset 96723_3_E2.#### details

Number of frames 44 (1 - 44)
Distance [mm] 290.0
Oscillation width [°] 1.00
Phi [°] 102.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)
