Diffraction project datasets MG14544A_3p1t

  • Method: MAD
  • Resolution: 2.6 Å
  • Space group: I 41 2 2
Download all images (10.7 GB)

PDB website for 3P1T
PDB validation report for 3P1T

doi:10.18430/M33P1T

Project details

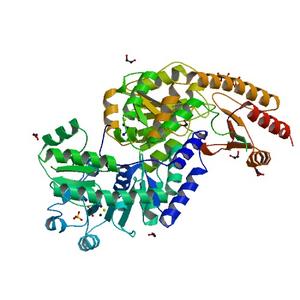

Title Crystal structure of a putative aminotransferase (BPSL1724) from Burkholderia pseudomallei K96243 at 2.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 167.55 x 167.55 x 290.53
Unit cell angles [°] 90.0, 90.0, 90.0

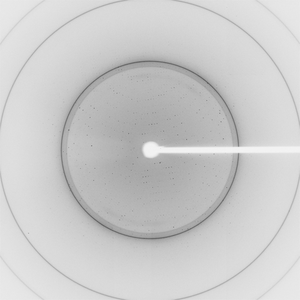

Dataset 153709_1_E1_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 205.0
Wavelength [Å] 0.97936
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

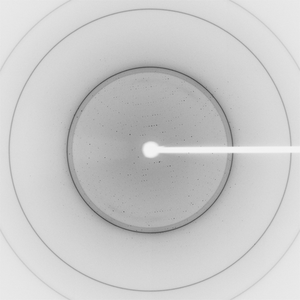

Dataset 153709_1_E2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 205.0
Wavelength [Å] 0.91837
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

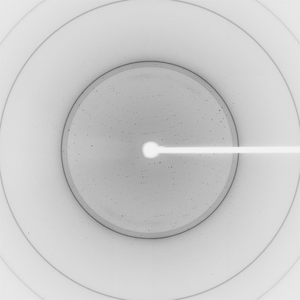

Dataset 153709_2_####.mccd details

Number of frames 226 (1 - 226)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 205.0
Wavelength [Å] 0.97922
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
