Diffraction project datasets MG14528A_3ecf

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 41 21 2
Download all images (5.1 GB)

PDB website for 3ECF
PDB validation report for 3ECF

doi:10.18430/M33ECF

Project details

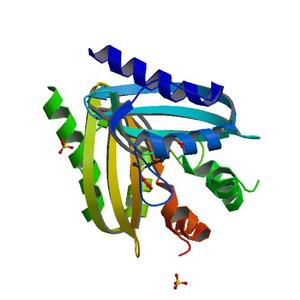

Title Crystal structure of an ntf2-like protein (ava_4193) from anabaena variabilis atcc 29413 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 74.06 x 74.06 x 189.38
Unit cell angles [°] 90.0, 90.0, 90.0

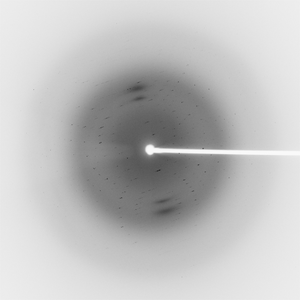

Dataset 90902_1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 214.0
Wavelength [Å] 0.97864
Experiment Date 2008-08-06
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

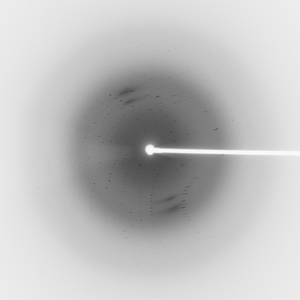

Dataset 90902_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 259.0
Wavelength [Å] 0.97864
Experiment Date 2008-08-06
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

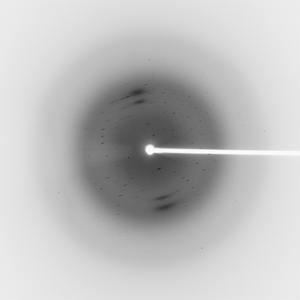

Dataset 90902_3_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 214.0
Wavelength [Å] 0.91837
Experiment Date 2008-08-06
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
