Diffraction project datasets MG14523A_3ehc

  • Method: MAD
  • Resolution: 2.12 Å
  • Space group: P 21 21 21
Download all images (5.7 GB)

PDB website for 3EHC
PDB validation report for 3EHC

doi:10.18430/M33EHC

Project details

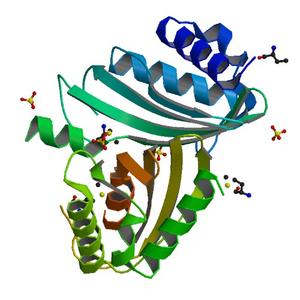

Title Crystal structure of a snoal-like polyketide cyclase (atu3018) from agrobacterium tumefaciens str. c58 at 2.12 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.24
Unit cell edges [Å] 52.10 x 114.06 x 137.99
Unit cell angles [°] 90.0, 90.0, 90.0

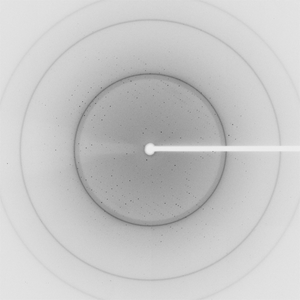

Dataset 89651_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 239.0
Wavelength [Å] 0.97932
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

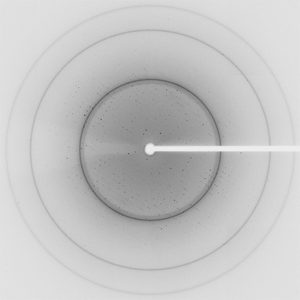

Dataset 89651_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 239.0
Wavelength [Å] 0.91162
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

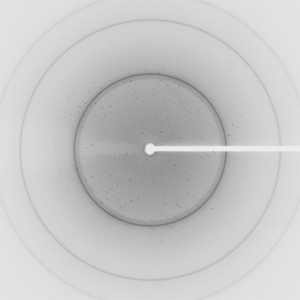

Dataset 89651_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 239.0
Wavelength [Å] 0.97920
Experiment Date 2008-08-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
