Diffraction project datasets MG14503Q_3euc

  • Method: MAD
  • Resolution: 2.05 Å
  • Space group: P 21 21 21
Download all images (3.3 GB)

PDB website for 3EUC
PDB validation report for 3EUC

doi:10.18430/M33EUC

Project details

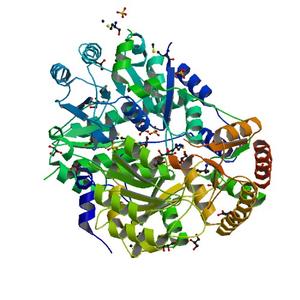

Title Crystal structure of histidinol-phosphate aminotransferase (YP_297314.1) from RALSTONIA EUTROPHA JMP134 at 2.05 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 76.58 x 93.43 x 111.34
Unit cell angles [°] 90.0, 90.0, 90.0

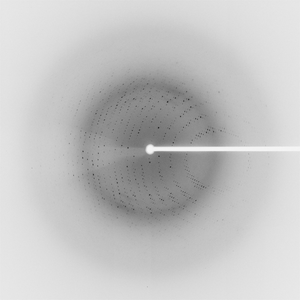

Dataset 93357_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 47.0
Wavelength [Å] 0.97934
Experiment Date 2008-08-11
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

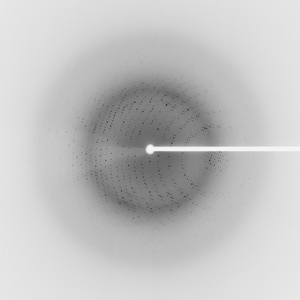

Dataset 93357_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 47.0
Wavelength [Å] 0.91837
Experiment Date 2008-08-11
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

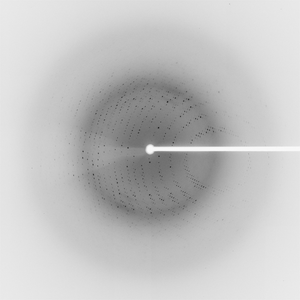

Dataset 93357_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 47.0
Wavelength [Å] 0.97915
Experiment Date 2008-08-11
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
