Diffraction project datasets MG14500A_3f14

  • Method: MAD
  • Resolution: 1.45 Å
  • Space group: P 32 2 1
Download all images (4.4 GB)

PDB website for 3F14
PDB validation report for 3F14

doi:10.18430/M33F14

Project details

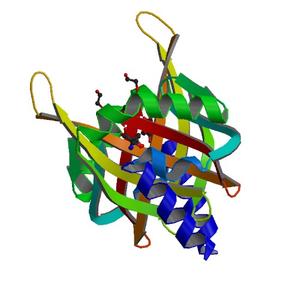

Title Crystal structure of NTF2-like protein of unknown function (YP_680363.1) from CYTOPHAGA HUTCHINSONII ATCC 33406 at 1.45 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.18
Unit cell edges [Å] 57.64 x 57.64 x 59.39
Unit cell angles [°] 90.0, 90.0, 120.0

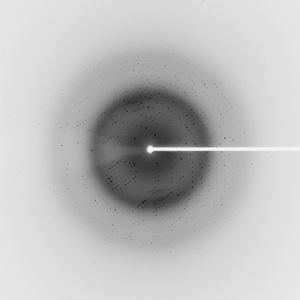

Dataset 91667_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 55.0
Wavelength [Å] 0.97939
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

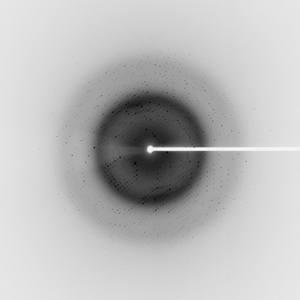

Dataset 91667_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 55.0
Wavelength [Å] 0.91162
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 91667_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 55.0
Wavelength [Å] 0.97925
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
