Diffraction project datasets MG14492C_3ez1

  • Method: MR
  • Resolution: 2.6 Å
  • Space group: P 1 21 1
Download all images (4.4 GB)

PDB website for 3EZ1
PDB validation report for 3EZ1

doi:10.18430/M33EZ1

Project details

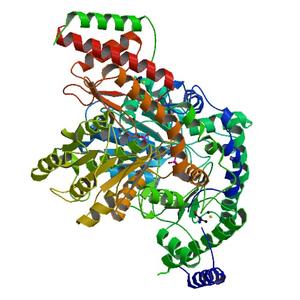

Title Crystal structure of putative aminotransferase (MocR family) (YP_604413.1) from DEINOCOCCUS GEOTHERMALIS DSM 11300 at 2.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.22 / 0.26
Unit cell edges [Å] 62.72 x 103.97 x 73.82
Unit cell angles [°] 90.0, 112.6, 90.0

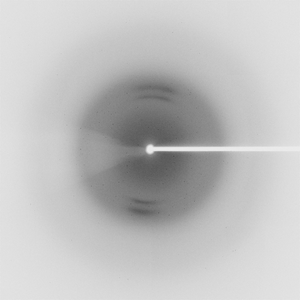

Dataset 92029_1_E1_###.mccd details

Number of frames 140 (1 - 140)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 102.0
Wavelength [Å] 0.97934
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

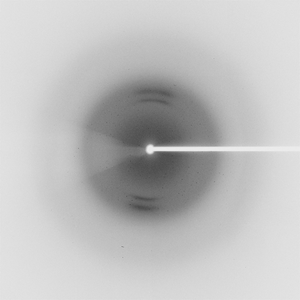

Dataset 92029_1_E2_###.mccd details

Number of frames 140 (1 - 140)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 102.0
Wavelength [Å] 0.91837
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

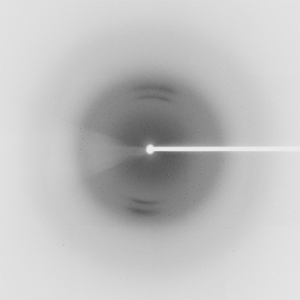

Dataset 92029_2_###.mccd details

Number of frames 140 (1 - 140)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 102.0
Wavelength [Å] 0.97918
Experiment Date 2008-08-10
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
