Diffraction project datasets MG14492B_3ppl

  • Method: MAD
  • Resolution: 1.25 Å
  • Space group: C 1 2 1
Download all images (25.2 GB)

PDB website for 3PPL
PDB validation report for 3PPL

doi:10.18430/M33PPL

Project details

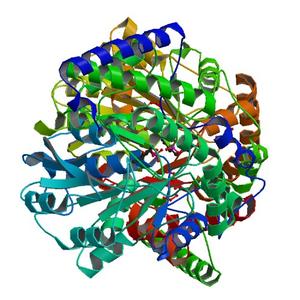

Title Crystal structure of an aspartate transaminase (NCgl0237, Cgl0240) from CORYNEBACTERIUM GLUTAMICUM ATCC 13032 KITASATO at 1.25 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.11 / 0.12
Unit cell edges [Å] 97.75 x 54.42 x 176.34
Unit cell angles [°] 90.0, 101.6, 90.0

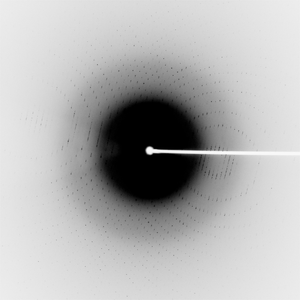

Dataset 149204_1_E1_####.mccd details

Number of frames 600 (1 - 600)
Distance [mm] 180.0
Oscillation width [°] 0.30
Phi [°] 142.0
Wavelength [Å] 0.97944
Experiment Date 2010-02-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

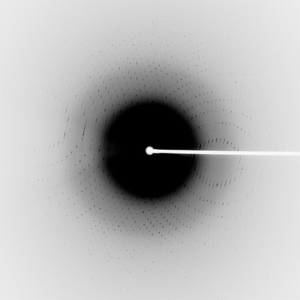

Dataset 149204_1_E2_####.mccd details

Number of frames 600 (1 - 600)
Distance [mm] 180.0
Oscillation width [°] 0.30
Phi [°] 142.0
Wavelength [Å] 0.91837
Experiment Date 2010-02-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

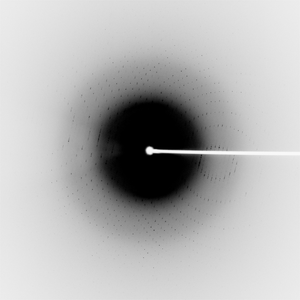

Dataset 149204_2_####.mccd details

Number of frames 600 (1 - 600)
Distance [mm] 180.0
Oscillation width [°] 0.30
Phi [°] 142.0
Wavelength [Å] 0.97908
Experiment Date 2010-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
