Diffraction project datasets MG14491A_3fdb

  • Method: MAD
  • Resolution: 1.99 Å
  • Space group: P 31 2 1
Download all images (14.6 GB)

PDB website for 3FDB
PDB validation report for 3FDB

doi:10.18430/M33FDB

Project details

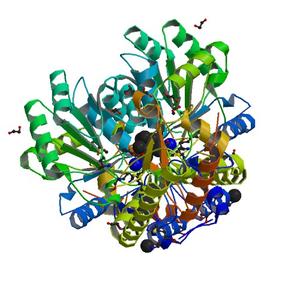

Title Crystal structure of a putative plp-dependent beta-cystathionase (aecd, dip1736) from corynebacterium diphtheriae at 1.99 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 69.18 x 69.18 x 215.46
Unit cell angles [°] 90.0, 90.0, 120.0

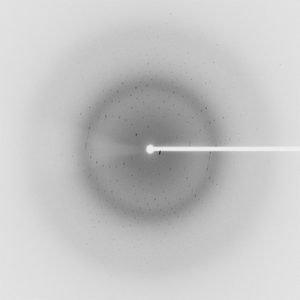

Dataset 91629_1_E1_###.mccd details

Number of frames 450 (1 - 450)
Distance [mm] 250.0
Oscillation width [°] 0.20
Phi [°] 167.0
Wavelength [Å] 0.97934
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

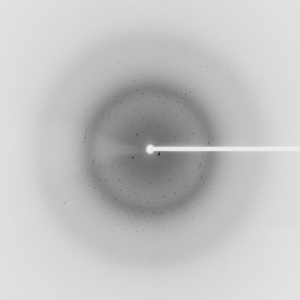

Dataset 91629_1_E2_###.mccd details

Number of frames 450 (1 - 450)
Distance [mm] 250.0
Oscillation width [°] 0.20
Phi [°] 167.0
Wavelength [Å] 0.91837
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

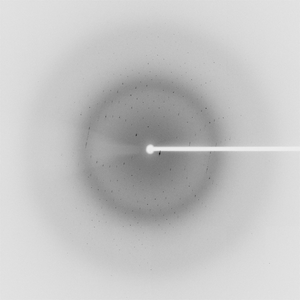

Dataset 91629_2_###.mccd details

Number of frames 450 (1 - 450)
Distance [mm] 250.0
Oscillation width [°] 0.20
Phi [°] 167.0
Wavelength [Å] 0.97922
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
