Diffraction project datasets MG14486B_3g14

  • Method: MAD
  • Resolution: 1.75 Å
  • Space group: P 1 21 1
Download all images (5.2 GB)

PDB website for 3G14
PDB validation report for 3G14

doi:10.18430/M33G14

Project details

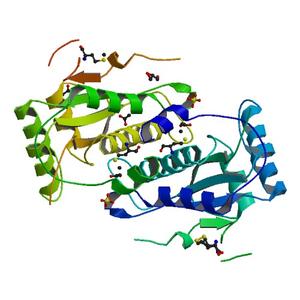

Title Crystal structure of nitroreductase family protein (YP_877874.1) from Clostridium novyi NT at 1.75 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 58.35 x 44.95 x 66.96
Unit cell angles [°] 90.0, 93.7, 90.0

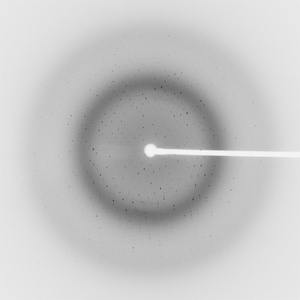

Dataset 101464_1_E1_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 202.0
Wavelength [Å] 0.97876
Experiment Date 2008-11-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

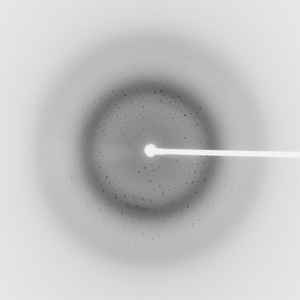

Dataset 101464_1_E2_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 202.0
Wavelength [Å] 0.91837
Experiment Date 2008-11-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

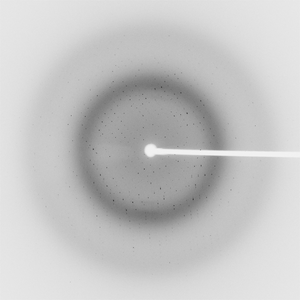

Dataset 101464_2_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 202.0
Wavelength [Å] 0.97826
Experiment Date 2008-11-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
