Diffraction project datasets MG14461A_3en8

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: C 2 2 21
Download all images (5.1 GB)

PDB website for 3EN8
PDB validation report for 3EN8

doi:10.18430/M33EN8

Project details

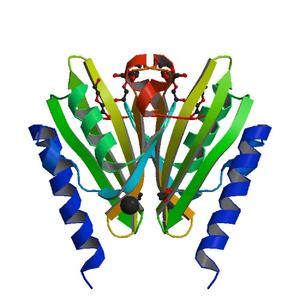

Title Crystal structure of NTF-2 like protein of unknown function (YP_553245.1) from BURKHOLDERIA XENOVORANS LB400 at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 61.51 x 60.33 x 92.61
Unit cell angles [°] 90.0, 90.0, 90.0

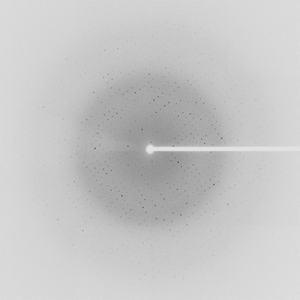

Dataset 90143_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 78.5
Wavelength [Å] 0.97934
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

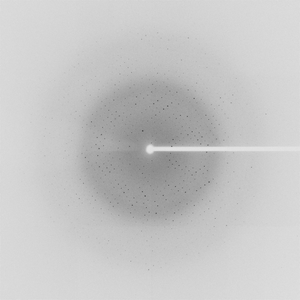

Dataset 90143_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 78.5
Wavelength [Å] 0.91162
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

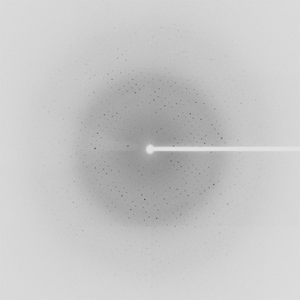

Dataset 90143_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 78.0
Wavelength [Å] 0.97920
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
