Diffraction project datasets MG14458B_3e99

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 63 2 2
Download all images (1.7 GB)

PDB website for 3E99
PDB validation report for 3E99

doi:10.18430/M33E99

Project details

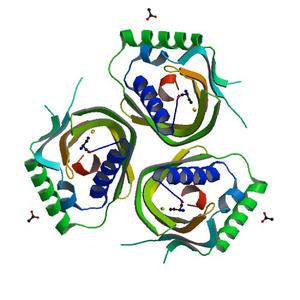

Title Crystal structure of the beta subunit of the benzoate 1,2-dioxygenase (benb, bmaa0186) from burkholderia mallei atcc 23344 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 58.95 x 58.95 x 167.07
Unit cell angles [°] 90.0, 90.0, 120.0

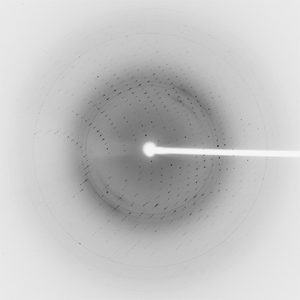

Dataset 91156_1_E1_###.mccd details

Number of frames 45 (1 - 45)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 45.0
Wavelength [Å] 0.97901
Experiment Date 2008-07-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

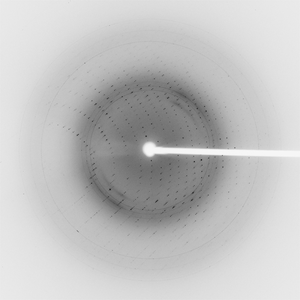

Dataset 91156_1_E2_###.mccd details

Number of frames 45 (1 - 45)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 45.0
Wavelength [Å] 0.91837
Experiment Date 2008-07-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

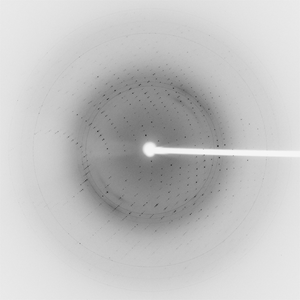

Dataset 91156_2_###.mccd details

Number of frames 45 (1 - 45)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 45.0
Wavelength [Å] 0.97822
Experiment Date 2008-07-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
