Diffraction project datasets MG14441A_3dxo

  • Method: MAD
  • Resolution: 2.7 Å
  • Space group: P 61 2 2
Download all images (1.5 GB)

PDB website for 3DXO
PDB validation report for 3DXO

doi:10.18430/M33DXO

Project details

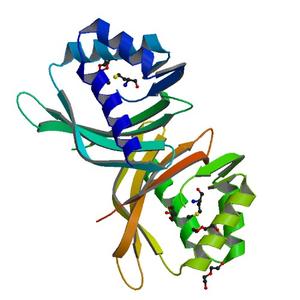

Title CRYSTAL STRUCTURE OF A PUTATIVE ISOMERASE OF THE SNOAL-LIKE FAMILY (ATU_0744) FROM AGROBACTERIUM TUMEFACIENS STR. C58 AT 2.70 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.23 / 0.26
Unit cell edges [Å] 119.57 x 119.57 x 94.49
Unit cell angles [°] 90.0, 90.0, 120.0

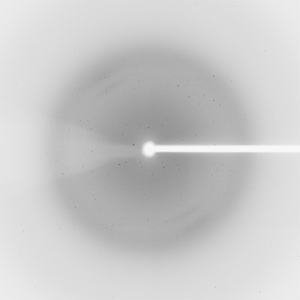

Dataset 88848_1_E1_###.mccd details

Number of frames 35 (1 - 35)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 298.0
Wavelength [Å] 0.97968
Experiment Date 2008-06-27
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 88848_1_E2_###.mccd details

Number of frames 30 (1 - 30)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 298.0
Wavelength [Å] 0.91162
Experiment Date 2008-06-27
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

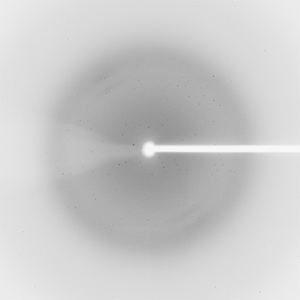

Dataset 88848_2_E1_###.mccd details

Number of frames 45 (1 - 45)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 298.0
Wavelength [Å] 0.97946
Experiment Date 2008-06-27
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
