Diffraction project datasets MG11417G_3g7q

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 61 2 2
Download all images (3.5 GB)

PDB website for 3G7Q
PDB validation report for 3G7Q

doi:10.18430/M33G7Q

Project details

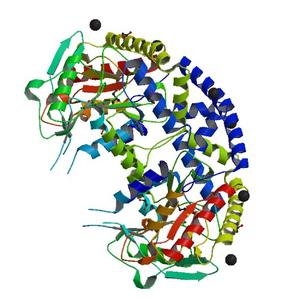

Title Crystal structure of valine-pyruvate aminotransferase AvtA (NP_462565.1) from Salmonella typhimurium LT2 at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 92.28 x 92.28 x 227.33
Unit cell angles [°] 90.0, 90.0, 120.0

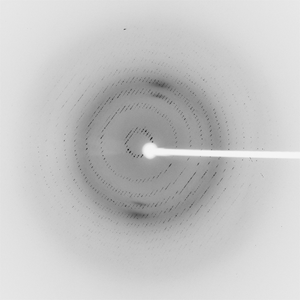

Dataset 98036_1_E1_###.mccd details

Number of frames 95 (1 - 95)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 350.0
Wavelength [Å] 0.97874
Experiment Date 2008-11-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

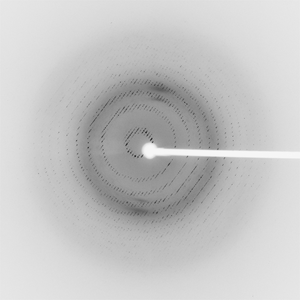

Dataset 98036_1_E2_###.mccd details

Number of frames 95 (1 - 95)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 350.0
Wavelength [Å] 0.91837
Experiment Date 2008-11-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

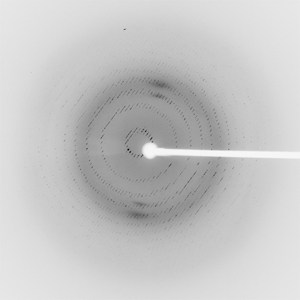

Dataset 98036_2_###.mccd details

Number of frames 95 (1 - 95)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 350.0
Wavelength [Å] 0.97828
Experiment Date 2008-11-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
