Diffraction project datasets MG11417F_3if2

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: I 4
Download all images (5.7 GB)

PDB website for 3IF2
PDB validation report for 3IF2

doi:10.18430/M33IF2

Project details

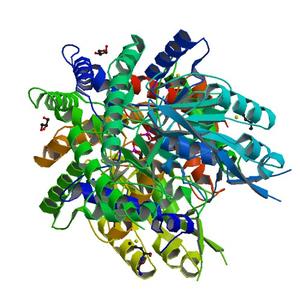

Title Crystal structure of Putative amino-acid aminotransferase (YP_265399.1) from Psychrobacter arcticum 273-4 at 2.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 152.81 x 152.81 x 100.61
Unit cell angles [°] 90.0, 90.0, 90.0

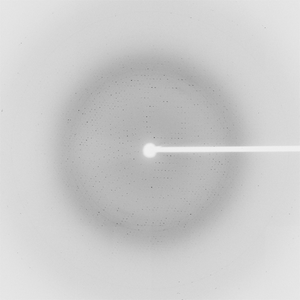

Dataset 113062_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 0.50
Phi [°] 56.0
Wavelength [Å] 0.97934
Experiment Date 2009-03-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

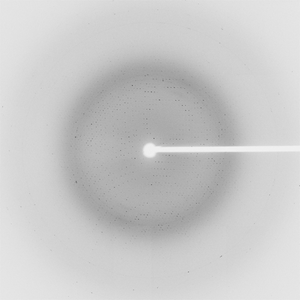

Dataset 113062_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 0.50
Phi [°] 56.0
Wavelength [Å] 0.91162
Experiment Date 2009-03-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

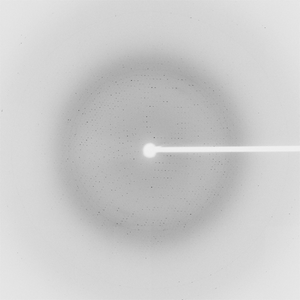

Dataset 113062_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 0.50
Phi [°] 56.0
Wavelength [Å] 0.97920
Experiment Date 2009-03-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
