Diffraction project datasets MG0829AS_3etn
- Method: MAD
- Resolution: 1.7 Å
- Space group: P 21 21 21
PDB website for 3ETN
PDB validation report for 3ETN
doi:10.18430/M33ETN
Project details

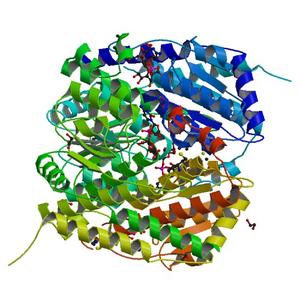

| Title | Crystal structure of putative phosphosugar isomerase involved in capsule formation (YP_209877.1) from Bacteroides fragilis NCTC 9343 at 1.70 A resolution |
| Authors | Chiu, H.J., Grant, J.C., Farr, C.L., Jaroszewski, L., Knuth, M.W., Miller, M.D., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 60.41 x 114.27 x 115.92 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

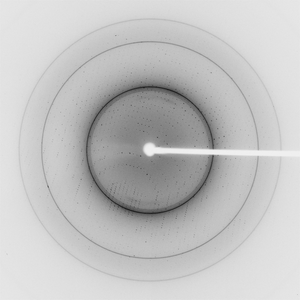

Dataset 91121_1_E1_###.mccd details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97910 |
| Experiment Date | 2008-08-01 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

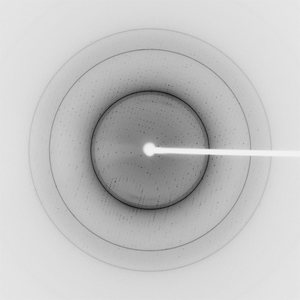

Dataset 91121_1_E2_###.mccd details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2008-08-01 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

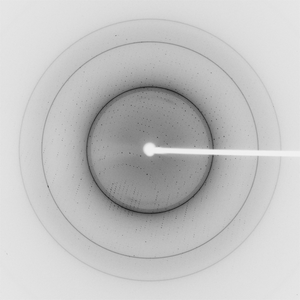

Dataset 91121_2_###.mccd details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97849 |
| Experiment Date | 2008-08-01 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
