Diffraction project datasets MG0383R_3ge5

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 43 21 2
Download all images (2.7 GB)

PDB website for 3GE5
PDB validation report for 3GE5

doi:10.18430/M33GE5

Project details

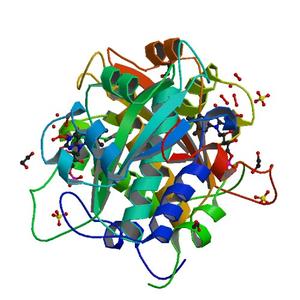

Title Crystal structure of a putative nad(p)h:fmn oxidoreductase (pg0310) from porphyromonas gingivalis w83 at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 112.06 x 112.06 x 68.30
Unit cell angles [°] 90.0, 90.0, 90.0

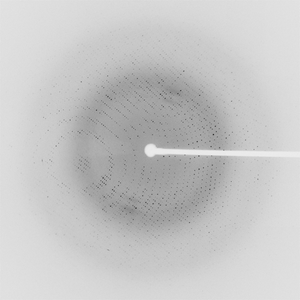

Dataset 103409_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 331.0
Wavelength [Å] 0.97870
Experiment Date 2008-11-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

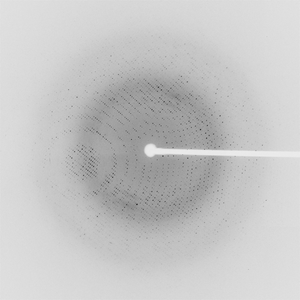

Dataset 103409_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 331.0
Wavelength [Å] 0.91837
Experiment Date 2008-11-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

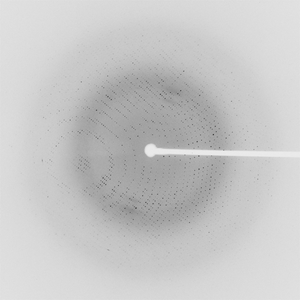

Dataset 103409_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 331.0
Wavelength [Å] 0.97833
Experiment Date 2008-11-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
