Diffraction project datasets MG0383C_3e10

  • Method: MAD
  • Resolution: 1.4 Å
  • Space group: P 21 21 2
Download all images (7.3 GB)

PDB website for 3E10
PDB validation report for 3E10

doi:10.18430/M33E10

Project details

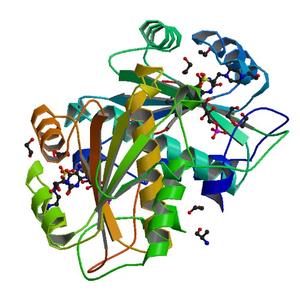

Title Crystal structure of Putative NADH Oxidase (NP_348178.1) from CLOSTRIDIUM ACETOBUTYLICUM at 1.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.13 / 0.17
Unit cell edges [Å] 82.08 x 83.53 x 51.89
Unit cell angles [°] 90.0, 90.0, 90.0

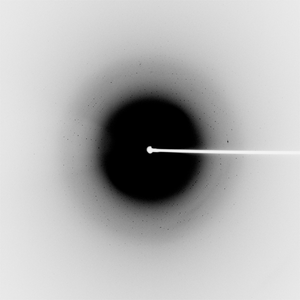

Dataset 89520_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 284.0
Wavelength [Å] 0.97908
Experiment Date 2008-07-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

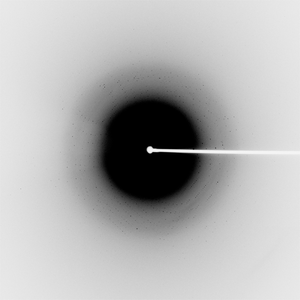

Dataset 89520_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 284.0
Wavelength [Å] 0.91837
Experiment Date 2008-07-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

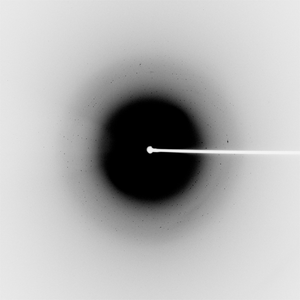

Dataset 89520_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 284.0
Wavelength [Å] 0.97849
Experiment Date 2008-07-17
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
