Diffraction project datasets MG0383AE_3eo8

  • Method: MAD
  • Resolution: 1.74 Å
  • Space group: P 1 21 1
Download all images (11.4 GB)

PDB website for 3EO8

doi:10.18430/M33EO8

Project details

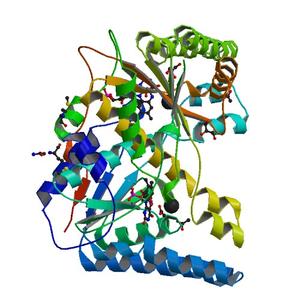

Title Crystal structure of BluB-like flavoprotein (YP_001089088.1) from CLOSTRIDIUM DIFFICILE 630 at 1.74 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 51.84 x 183.26 x 74.39
Unit cell angles [°] 90.0, 104.9, 90.0

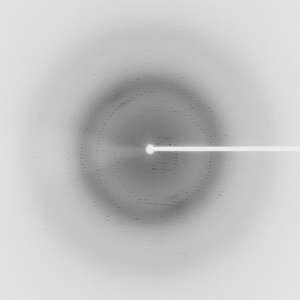

Dataset 91765_1_E1_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 120.0
Wavelength [Å] 0.97934
Experiment Date 2008-08-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

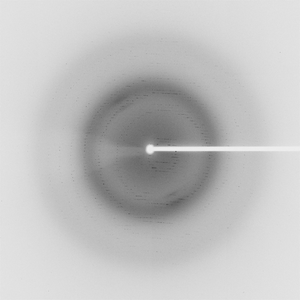

Dataset 91765_1_E2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 120.0
Wavelength [Å] 0.91837
Experiment Date 2008-08-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

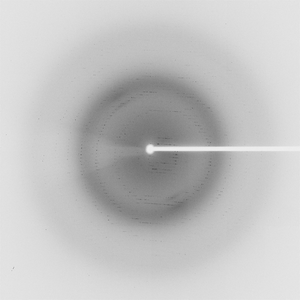

Dataset 91765_2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 120.0
Wavelength [Å] 0.97918
Experiment Date 2008-08-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
