Diffraction project datasets MG0148K_3hba

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 21 21 21
Download all images (3.3 GB)

PDB website for 3HBA
PDB validation report for 3HBA

doi:10.18430/M33HBA

Project details

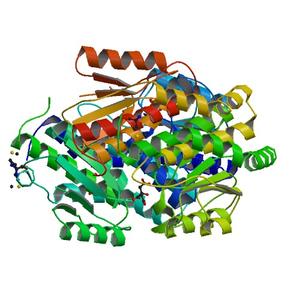

Title Crystal structure of a putative phosphosugar isomerase (sden_2705) from shewanella denitrificans os217 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 74.58 x 89.44 x 109.50
Unit cell angles [°] 90.0, 90.0, 90.0

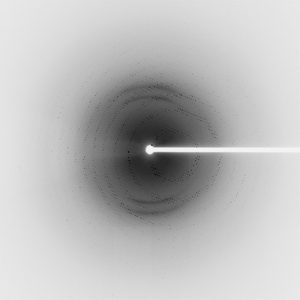

Dataset 105824_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 336.0
Wavelength [Å] 0.97961
Experiment Date 2009-01-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

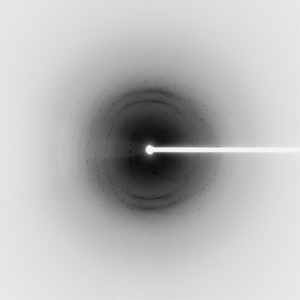

Dataset 105824_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 336.0
Wavelength [Å] 0.91162
Experiment Date 2009-01-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

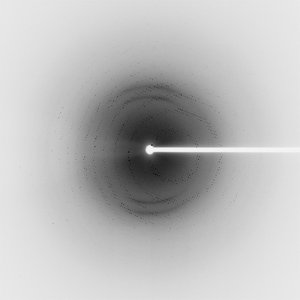

Dataset 105824_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 336.0
Wavelength [Å] 0.97944
Experiment Date 2009-01-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
