Diffraction project datasets MBD3_x238730_6cc8
- Resolution: 1.95 Å
- Space group: C 1 2 1
PDB website for 6CC8
PDB validation report for 6CC8
doi:10.18430/M36CC8
Project details

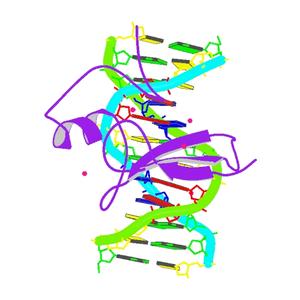

| Title | Crystal structure MBD3 MBD domain in complex with methylated CpG DNA |
| Authors | Liu, K., Tempel, W., Bountra, C., Arrowsmith, C.H., Edwards, A.M., Min, J. |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 71.55 x 36.64 x 130.93 |
| Unit cell angles [°] | 90.0, 92.8, 90.0 |

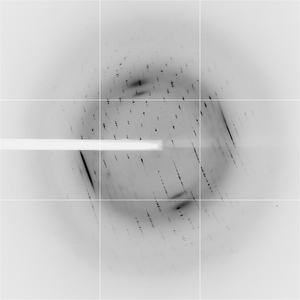

Dataset r1.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0033 |
| Wavelength [Å] | 0.97923 |
| Experiment Date | 2012-10-20 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

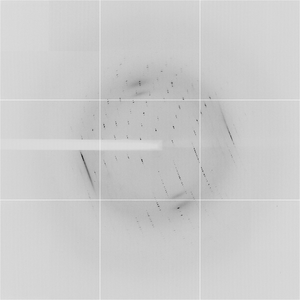

Dataset r2.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0033 |
| Wavelength [Å] | 0.97923 |
| Experiment Date | 2012-10-20 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
