Diffraction project datasets MA16085B_3qc3

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: P 41
Download all images (2.8 GB)

PDB website for 3QC3
PDB validation report for 3QC3

doi:10.18430/M33QC3

Project details

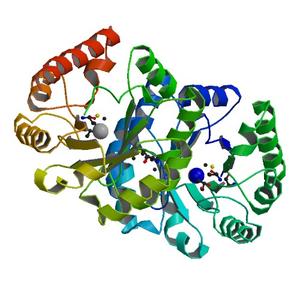

Title Crystal structure of a D-ribulose-5-phosphate-3-epimerase (NP_954699) from HOMO SAPIENS at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.21
Unit cell edges [Å] 47.67 x 47.67 x 220.77
Unit cell angles [°] 90.0, 90.0, 90.0

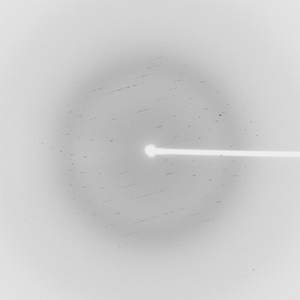

Dataset 140722_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 330.0
Oscillation width [°] 1.00
Phi [°] 129.0
Wavelength [Å] 0.97944
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

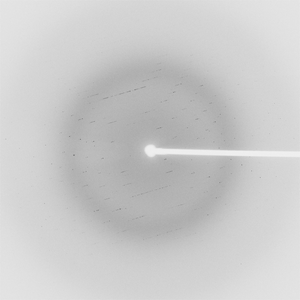

Dataset 140722_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 330.0
Oscillation width [°] 1.00
Phi [°] 129.0
Wavelength [Å] 0.91837
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

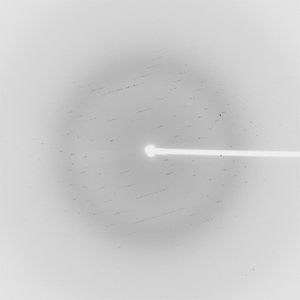

Dataset 140722_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 330.0
Oscillation width [°] 1.00
Phi [°] 129.0
Wavelength [Å] 0.97894
Experiment Date 2009-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
