Diffraction project datasets LpinA_19565_6ulo

  • Resolution: 1.3 Å
  • Space group: P 1
Download all images (4.8 GB)

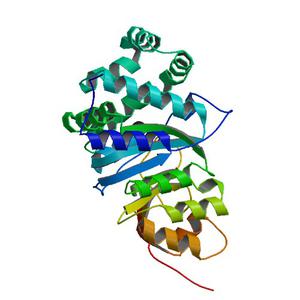

PDB website for 6ULO

doi:10.18430/m36ulo

Project details

Title Structure of an N-terminally truncated uncharacterized protein from Leptospira interrogans serogroup Icterohaemorrhagiae serovar Copenhageni (strain Fiocruz L1-130)
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 52.44 x 56.65 x 60.99
Unit cell angles [°] 98.6, 106.3, 83.3

Dataset 310523c1_x_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 310523c1_y1_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 5.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

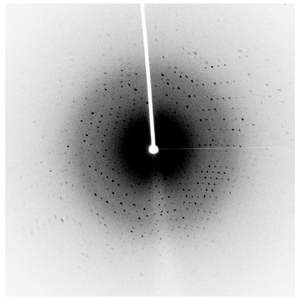

Dataset 310523c1_y2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 5.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

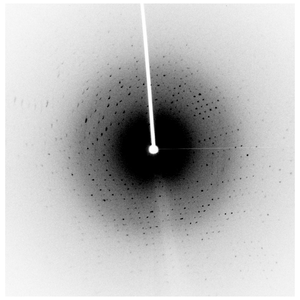

Dataset 310523c1_z1_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 310523c1_z2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 10.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

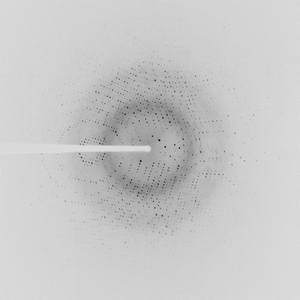

Dataset pas1-8.### details

Number of frames 360 (1 - 360)
Distance [mm] 145.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97872
Experiment Date 2019-08-15
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
