Diffraction project datasets LpboA_19655_b_B1_6ncs

  • Resolution: 1.8 Å
  • Space group: P 1 21 1
Download all images (3.3 GB)

PDB website for 6NCS
PDB validation report for 6NCS

doi:10.18430/m36ncs

Project details

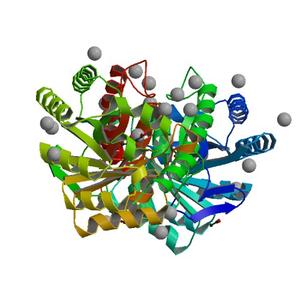

Title Crystal structure of N-acetylneuraminic acid (Sialic acid) synthetase from Leptospira borgpetersenii serovar Hardjo-bovis in complex with citrate
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 69.88 x 49.12 x 88.85
Unit cell angles [°] 90.0, 112.4, 90.0

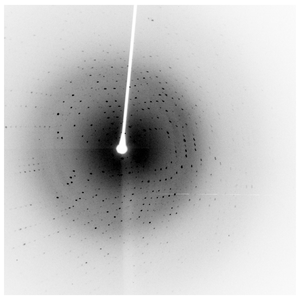

Dataset 303852g8_x_####.img details

Number of frames 1440 (1 - 1440)
Distance [mm] 50.0
Oscillation width [°] 0.25
Omega [°] -80.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

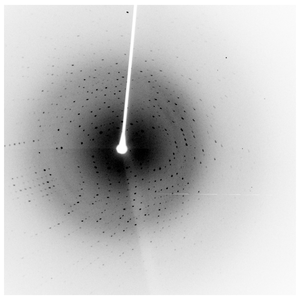

Dataset 303852g8_y_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.25
Omega [°] -80.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

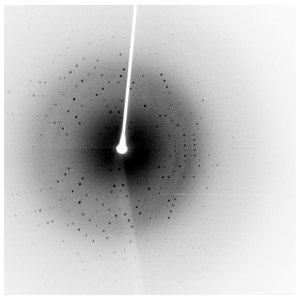

Dataset 303852g8_yy_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.25
Omega [°] -80.0
Kappa / Chi [°] 10.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
