Diffraction project datasets LepnA_18372_a_B1_6ndr
- Resolution: 1.6 Å
- Space group: C 1 2 1
PDB website for 6NDR
PDB validation report for 6NDR
doi:10.18430/m36ndr
Project details

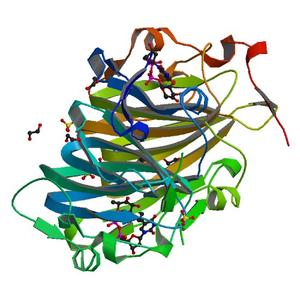

| Title | Crystal structure of dTDP-6-deoxy-D-glucose-3,5-epimerase RmlC from Legionella pneumophila Philadelphia 1 in complex with dTDP-4-KETO-L-RHAMNOSE |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 103.38 x 46.16 x 102.03 |
| Unit cell angles [°] | 90.0, 112.3, 90.0 |

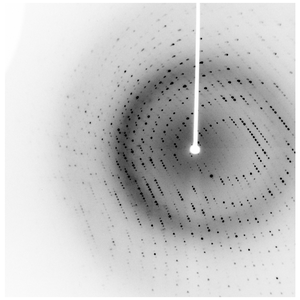

Dataset 300303e4_x_####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -105.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset 300303e4_y_####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -105.0 |
| Kappa / Chi [°] | 15.0 |
| Phi [°] | 60.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
