Diffraction project datasets LepnA_00809_a_B1-ANP-ARG_7k5z
- Resolution: 1.85 Å
- Space group: C 1 2 1
PDB website for 7K5Z
PDB validation report for 7K5Z
doi:10.18430/m37k5z
Project details

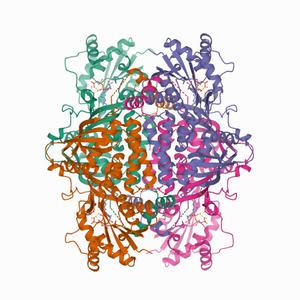

| Title | Crystal Structure of Argininosuccinate synthase from Legionella pneumophila Philadelphia 1 in complex with ANPPNP and a substrate analogue Arginine |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 122.23 x 103.54 x 147.41 |
| Unit cell angles [°] | 90.0, 96.0, 90.0 |

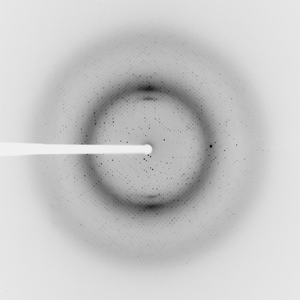

Dataset iyy7-9.### details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 215.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 110.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-06-25 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
