Diffraction project datasets L3MBTL3_4fl6
- Resolution: 2.55 Å
- Space group: C 1 2 1
PDB website for 4FL6
PDB validation report for 4FL6
doi:10.18430/m34fl6
Project details

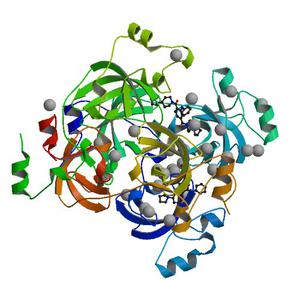

| Title | Crystal structure of the complex of the 3-MBT repeat domain of L3MBTL3 and UNC1215 |
| Authors | Zhong, N., Tempel, W., Ravichandran, M., Dong, A., Ingerman, L.A., Graslund, S., Frye, S.V., Bountra, C., Arrowsmith, C.H., Edwards, A.M., Brown, P.J., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.20 / 0.26 |
| Unit cell edges [Å] | 228.03 x 54.37 x 65.55 |
| Unit cell angles [°] | 90.0, 97.1, 90.0 |

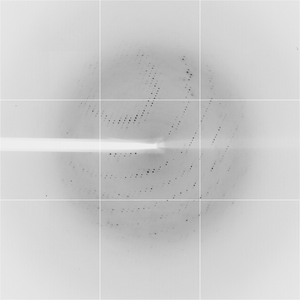

Dataset r2.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -60.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97931 |
| Experiment Date | 2012-04-04 |
| Equipment | 19ID |
