Diffraction project datasets KlpnC_20447_a_B1-AR6_9dtc
- Resolution: 1.4 Å
- Space group: P 21 21 21
Uniprot website for A0A0H3GVQ7
PDB website for 9DTC
PDB validation report for 9DTC
doi:10.18430/M39DTC
Project details

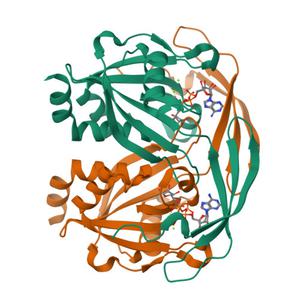

| Title | Crystal structure of ADP-ribose diphosphatase from Klebsiella pneumoniae (ADP Ribose bound, orthrhombic form2) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 57.43 x 79.75 x 91.98 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

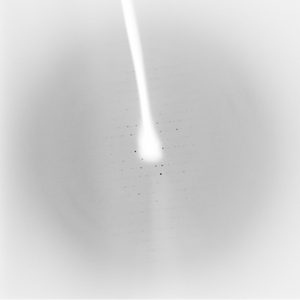

Dataset Net1dCFab_Net1dCtrtFabmay30B5_test_2_####.osc details
| Number of frames | 157 (1 - 157) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 1.54187 |
| Experiment Date | 2017-06-27 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |

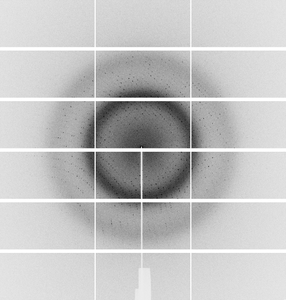

Dataset PSL-1006_1560_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 140.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97857 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
