Diffraction project datasets KlpnC_18288_a_B1-Apo_7tm4
- Resolution: 1.7 Å
- Space group: P 32
PDB website for 7TM4
PDB validation report for 7TM4
doi:10.18430/M37TM4
Project details

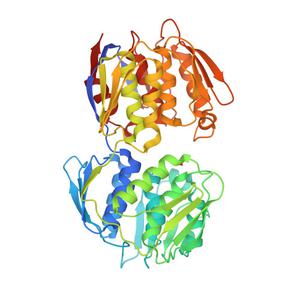

| Title | Crystal structure of apo 3-phosphoshikimate 1-carboxyvinyltransferase from Klebsiella pneumoniae |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 43.71 x 43.71 x 171.07 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

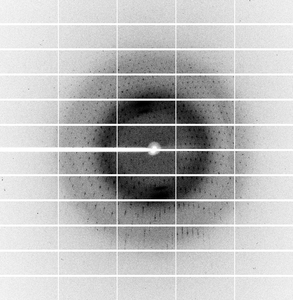

Dataset PSL0612_1_#####.cbf details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | 360.0 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2021-10-20 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
