Diffraction project datasets KlpnC_17896_a_B1-Biotin_8fi3
- Resolution: 2.9 Å
- Space group: P 21 21 2
PDB website for 8FI3
PDB validation report for 8FI3
doi:10.18430/M38FI3
Project details

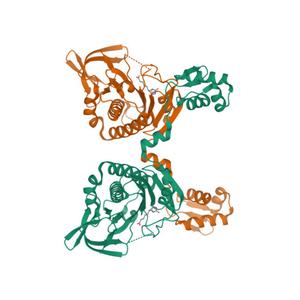

| Title | Bifunctional ligase/repressor BirA from Klebsiella pneumoniae complexed with biotin (Domain Swapped Dimer) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.24 / 0.31 |
| Unit cell edges [Å] | 153.00 x 84.44 x 58.02 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

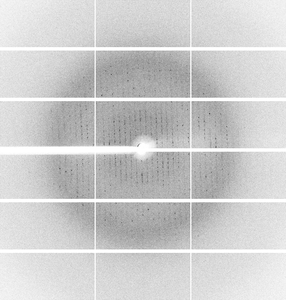

Dataset PSL-0113_1049_master.h5@##### details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97857 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
