Diffraction project datasets KlpnC_00980_a_B1_7t7j

  • Resolution: 1.5 Å
  • Space group: P 1 21 1
Download all images (4.8 GB)

PDB website for 7T7J
PDB validation report for 7T7J

doi:10.18430/M37T7J

Project details

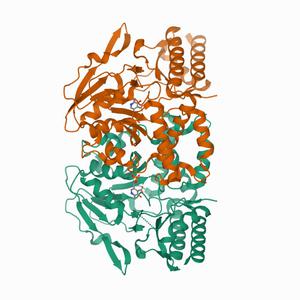

Title Crystal Structure of Phosphoserine aminotransferase from Klebsiella pneumoniae subsp. pneumoniae in complex with Pyridoxal phosphate
Authors Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.13 / 0.16
Unit cell edges [Å] 55.21 x 80.66 x 86.82
Unit cell angles [°] 90.0, 104.1, 90.0

Dataset 323613g9_aa1_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 45.0
Oscillation width [°] 0.25
Omega [°] -105.0
Kappa / Chi [°] 30.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

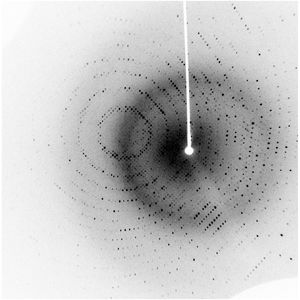

Dataset 323613g9_aa2_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 45.0
Oscillation width [°] 0.25
Omega [°] -105.0
Kappa / Chi [°] 30.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 323613g9_x_####.img details

Number of frames 1440 (1 - 1440)
Distance [mm] 45.0
Oscillation width [°] 0.25
Omega [°] -105.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

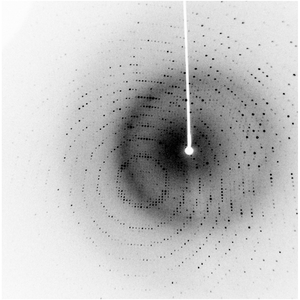

Dataset 323613g9_y1_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 45.0
Oscillation width [°] 0.25
Omega [°] -105.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

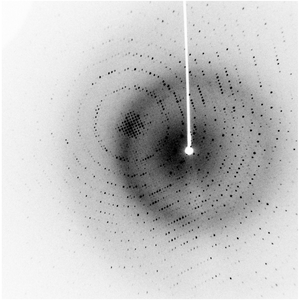

Dataset 323613g9_y2_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 45.0
Oscillation width [°] 0.25
Omega [°] -105.0
Kappa / Chi [°] 10.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

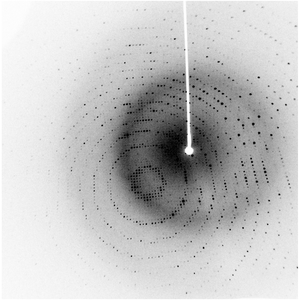

Dataset 323613g9_z1_####.img details

Number of frames 167 (1 - 167)
Distance [mm] 45.0
Oscillation width [°] 0.25
Omega [°] -105.0
Kappa / Chi [°] 20.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
